Double Girder Electromagnetic Overhead Crane
Electromagnetic Overhead Crane Introduction
Electromagnetic overhead crane is a kind of material handling equipment, equipped with detachable electromagnetic chuck and corresponding operating system to handle and lift metal objects. The lifting capacity of the electromagnetic overhead crane included the weight of electromagnetic is 5 to 32 ton. The working class of electromagnetic crane is A5 and A6. The magnetic retentive time is 10 to 30 minutes.
Specific parameters of electromagnetic overhead crane is shown in the following table:
| Product Type | QC |
|---|---|
| Lifting Capacity | 5~32t |
| Span Length | 10.5~31.5m |
| Working Class | A5, A6 |
| Ambient Temperature | -20~40℃ |
Technical data of Electromagnetic Overhead Crane
The specific parameters of the electromagnetic overhead crane are shown in the following table:
| Technical Parameter of QC Electromagnetic Overhead Crane | |||||||
| Capacity | t | 5 | 10 | 16 | 20 | 32 | 50 |
| Span | m | 10.5~31.5 | |||||
| Lifting height | m | 6~18 | |||||
| Lifting speed | m/min | 15.5 | 13.3 | 13 | 9.7 | 9.5 | 7.8 |
| Trolley speed | m/min | 37.2 | 45.9 | 44.6 | 44.6 | 42.4 | 38.5 |
| Crane speed | m/min | 115.6 | 115.6 | 112.5 | 112.5 | 101.4 | 86.8 |
| Work duty | A5~A6 | A5~A6 | A5~A6 | A5~A6 | A5~A6 | A5~A6 | |
| Track type | P43 | P43 | P43 or QU70 | P43 or QU70 | QU70 or 90*90 | QU80 or 100*100 | |
Components of Electromagnetic overhead crane
Electromagnetic overhead crane is mainly consisted of crane bridge, trolley, crane traveling mechanism, driver’s cabin, electrical system, electromagnetic system, including electromagnetic chuck, rectification control equipment, cable connectors and others.
Application of electromagnetic overhead crane

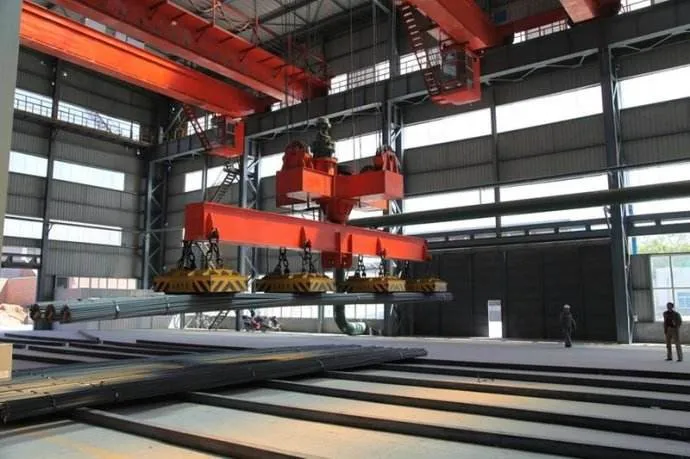

The electromagnetic overhead crane can be used for handling and transporting indoor and outdoor black metal products and materials, such as ingots, structural steel, iron, scrap iron, steel and others.
Advantages of electromagnetic overhead crane
- New style, compact structure, delicate appearance
- Good usability and durable quality
- High loading capacity and working class
- High safety and reliability
- Light dead weight, lower wheel load and low noise
- Low power consumption and few faults
- Wide application and competitive price
 |
 |
 |
 |
 |
 |
Features of electromagnetic overhead crane
- On material. All compression structural part of crane’s components is made of high quality materials confirming with the regulations and standards, whose inspection report can be provided when required.
- On welding. The welding of steel structures will be strictly checked and inspected by specialist and the inspection reports also can be provided on requirement.
- On magnetic chuck. The magnetic chuck has huge magnetic force which can be used to lift and transport wide range of metal products and can handle large volume of metals at a time.
- On motor. Top brand motors are installed with good performance and with Class F insulation and IP54 protective class.
- On electric system. PLC control to all the mechanism and any speed requirement can be achieved.
- On control system. Cabin with joystick panel, wireless control and pendant control can be your choices.
- On painting. 3 layers of painting is painted to protect the steel from rusting.
- On safety. Various protection measures are taken to ensure the safety of crane and operation. Overload limit, height limit, rail end stop limit for traveling are used to protect mechanical system and short circuit protection, lose phase protection, low-voltage protection, power failure protection, over current protection are used to protect electric system.
