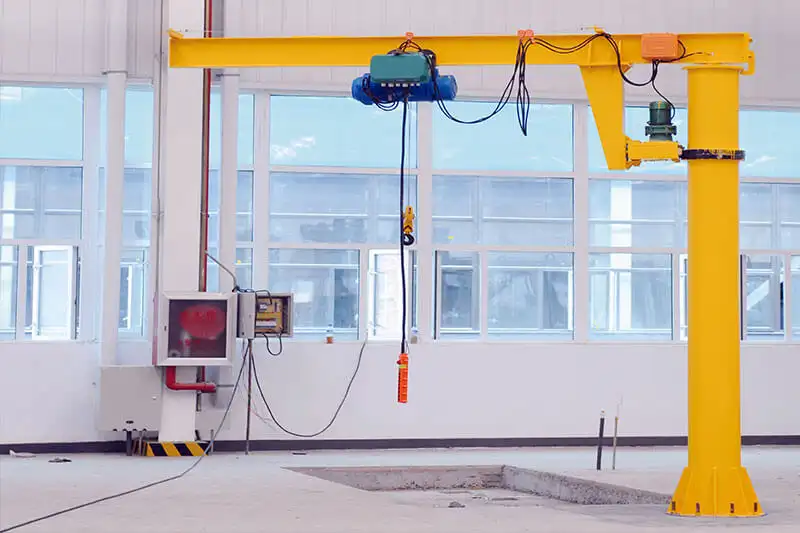

Pillar Jib Crane
Pillar jib crane also called pillar mounted jib crane is a type of freestanding small and medium material handling equipment with the base plate installed on the floor without any support from the building. The lifting capacity of pillar jib crane is 0.5 to 10 tons and the working class is A3. The main specifications of pillar jib crane are presented as follow:
| Product Type | BZ |
|---|---|
| Lifting Capacity | 0.5~16t |
| Lifting Height | 3~6m |
| Working Class | A3 |
| Ambient Temperature | -25~40℃ |
Components of Pillar Jib Crane
Pillar jib crane is mainly consisted of up-pillar, down pillar, main beam bar, electric hoist, rotating mechanism and electric system, etc.
pillar jib crane drawing
Application of Pillar Jib Crane
Pillar jib crane is widely used in workshop, warehouse, dock, yard, storage and other places where the pillar can be installed. Pillar jib crane shows superiority when used in short range or serried applications.
However, they are forbidden to be used in dangerous applications where is inflammable, explosive, and corrosive, etc. What’s more, pillar jib crane cannot be used to handling molten metal, toxic and inflammable and explosive materials, etc.
Features of Pillar Jib Crane
- Three phase AC of power supply, rated frequency 50HZ, and rated voltage 380V.
- Altitude of crane installation site is less than 2000m.
- Pipe with ample strength is made into post.
- Crane jib swivels on antifriction bearings.
- Slewing motion is available in both manual as well as motorized variety.
- Jib construction can be under braced or over braced.
- Wide base plate at the bottom of jib makes the loads pressures distributed evenly on foundation.
- Manual chain hoist, geared trolley, electrical chain hoist, motorized trolley and other lifting units are available.
- Radio remote control are available for remote crane operation.
