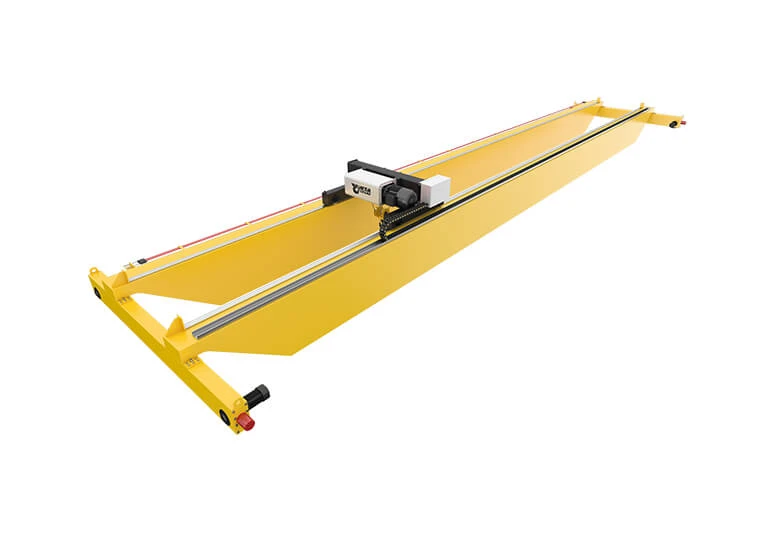

1 to 32 tons Single Girder Overhead Crane

Single Girder Overhead Crane,Double Girder Overhead Cranes,Overhead Bridge Crane,Bridge Crane,Overhead Crane

The single-girder bridge crane is a lifting equipment that is horizontally mounted above workshops, warehouses and material yards to lift materials. Because its two ends are located on tall concrete columns or metal brackets, it is shaped like a bridge. The bridge of the single-girder bridge crane runs longitudinally along the tracks laid on the elevated platforms on both sides, and can make full use of the space under the bridge to lift materials without being hindered by ground equipment. It is an important tool and equipment for realizing the mechanization and automation of the production process in modern industrial production and lifting and transportation. Therefore, single-girder bridge cranes are widely used in indoor and outdoor industrial and mining enterprises, steel and chemical industries, railway transportation, ports and terminals, and logistics turnover departments and places.

HD single girder overhead crane is designed accordance with international standards: DIN (Germany), FEM (Europe), ISO (International), has the advantages of strong rigidity, light weight, outstanding structural design, etc., can effectively save plant space and investment costs.
Composition: main beam, end carridges, electric hoist, electrical equipment. (Each part can be provided separately)
Control mode options: pendant control, remote control, cabin control

• Lifting Capacity: 1-32 ton
• Lifting Height: 1-50 m
• Span: 6-28.5m
• Voltage: 220-440V 50/60Hz 3Phase
• Protection Class: IP44-IP55Working
• Temperature: -20-+40 ℃
• Lifting Mechanism: Electric Hoist
• Color: Blue, Yellow, Customized

Types of Overhead Bridge Cranes

Overhead bridge cranes can be provided in multiple configurations depending on the need. These crane types can be identified by how many bridge girders they have, how they are mounted to the runways, and how they were engineered. Construction can be from Standard I-Beams, Wide Flange Beams, Patented Track, Monobox, and Box Girder Design.

Dongqi Overhead Crane is your go-to source for all types of electric overhead traveling cranes (EOT crane) or ceiling mounted bridge cranes including:


Single Girder Crane - single beam on top of or under the runway/end trucks.

Double Girder Crane - 2 bridge beams on top of or under the runway/end trucks.

Many factors need to be considered when deciding which type of crane will be best for your application: What is the weight being lifted? What span will the overhead crane need to be? How often will it be in use? Will this be indoors or outdoors? What is the size of the building? Our in-house engineering can provide a complete package of footing design, runway design and bridge crane design. Our sales engineers can provide the expertise to help you choose the correct piece of equipment for your application.

Depending on your application, you may choose a top running single girder crane, a under running single girder (under hung) crane, a double girder top running crane or a double girder under running crane.
