Indoor Gantry Crane for Sale in the Philippines
Overview
A manufacturing facility in the Philippines required a flexible indoor lifting solution to improve material handling efficiency without modifying its existing building structure. A custom indoor gantry crane was selected as the most practical and cost-effective option.
Project Challenge
-
Limited workshop height
-
No possibility to install overhead runway beams
-
Need for safe and efficient lifting of heavy components
-
Minimal disruption to ongoing production
Our Solution
We supplied a customized single-girder indoor gantry crane, designed specifically for the customer’s workshop layout.
Key Specifications:
-
Lifting Capacity: 5 tons
-
Crane Type: Indoor single girder gantry crane
-
Hoist: Electric wire rope hoist
-
Control: Pendant control (remote optional)
-
Power Supply: 380V / 60Hz (Philippines standard)
The crane was delivered in modular sections and installed quickly with remote technical support.
Results
-
Improved material handling efficiency
-
Enhanced workplace safety
-
Lower installation cost compared to overhead cranes
-
Flexible operation within indoor production areas
The customer reported stable performance and high satisfaction after commissioning.
Main Specifications of Indoor Gantry Crane

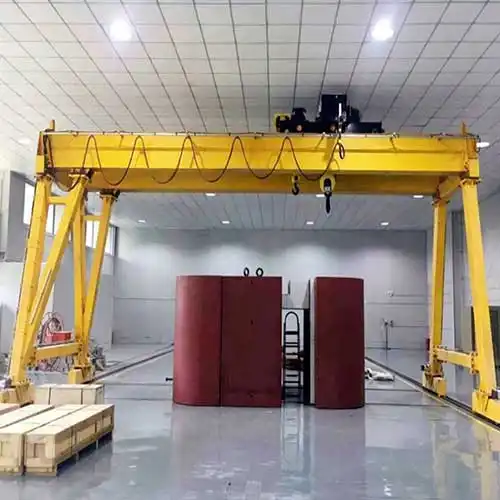

Full gantry crane for indoor use parameters:
- Lifting Capacity:1 ton ~32 ton, up to 320 ton with processing design
- Span Length: 12~30m
- Lifting Height: 6~18m
- Working Class: A3, A4
- Traveling Speed: 20~30m/min
- Lifting Speed: 3-8m/mim or 0.3/3-0.8/8m/min

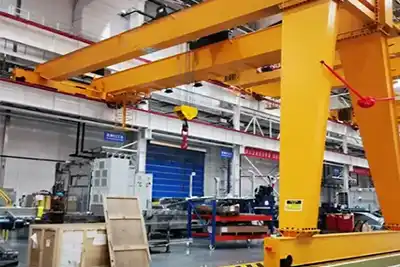

Semi gantry crane parameters:
- Capacity: 1 ton to 32 ton
- Span: 12-30m
- Lifting height: 6-12m
- Lifting speed: 6-11.5m/min
- Trolley running speed: 37-40.1m/min
- Crane running speed: 37.7-40.1m/min
- Work duty: A3-A6
Why Indoor Gantry Cranes in the Philippines
Indoor gantry cranes are ideal for Philippine factories due to:
-
Easy installation
-
No building modification required
-
Cost-effective indoor lifting solution
-
Suitable for manufacturing, warehouses, and maintenance areas
